Heavy-duty automatic packaging equipment engineered for high-speed accuracy, food-grade SS304/SS316 sanitary standards, and 24/7 continuous industrial reliability. Manufactured in Ahmedabad, India and exported to 35+ countries.
Fully automated PLC touchscreen packaging machine with servo-controlled dosing and smart eye-mark sensor.
Fill out your details to receive customized plant drawings, capacity calculations, and factory-direct pricing within 1 hour.
An in-depth look at how the Automatic Pouch Packaging Machine combines heavy structural stability, sanitary SS304/SS316 food-grade construction, and state-of-the-art servo automation.
The Automatic Pouch Packaging Machine by Heerawati Food Packaging Machines is engineered specifically for commercial manufacturing plants requiring robust, non-stop packaging operations. Combining a rigid, vibration-absorbing structural steel framework with high-grade sanitary stainless steel (SS304/SS316) for all contact parts, this machine meets the most demanding food safety and hygiene protocols (FSSAI, GMP, and ISO 9001:2015).
Equipped with an intuitive multi-recipe programmable logic controller (PLC) and a full-color touch-screen human-machine interface (HMI), operators can configure fill parameters, digital sealing temperatures, cycle speeds, and bag lengths with single-touch convenience. Precision servo motors govern both film draw belts and dosing mechanisms, virtually eliminating product giveaway and assuring an exact fill weight tolerance within ±0.5%.
Whether running heat-sealable laminated poly rolls, BOPP, aluminum foil, or biodegradable barrier materials, the machine’s digitally regulated PID temperature bars produce hermetic, leak-proof cross and longitudinal seals that maintain product freshness and significantly extend market shelf life.
Micro-step servo auger and digital load-cells guarantee optimal dosage without wasting expensive raw material.
Certified non-corrosive contact surfaces designed for rapid CIP wash-downs and zero cross-contamination.
Quick-release forming collars allow switching pouch sizes or film widths in under 15 minutes.
Reinforced mechanical drive components engineered for round-the-clock commercial manufacturing cycles.
The Automatic Pouch Packaging Machine is universally configured to pack dry powders, free-flowing granules, snack foods, pharmaceuticals, and liquids across diverse commercial sectors.
🌶️ Spices & Seasonings
Dust-tight enclosed auger filling for turmeric, red chilli, coriander, cumin, garam masala, custard powder, and blended seasonings.
🌾 Grains & Pulses
High-volume dosing for basmati rice, lentils (dal), wheat flour (atta), besan, maida, refined sugar, free-flowing salt, and agricultural seeds.

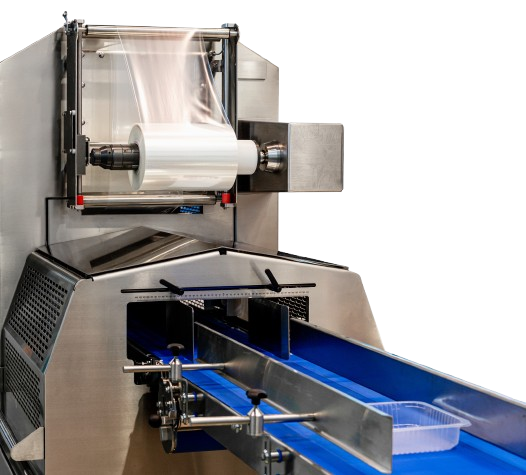

🍿 Snacks & Chips
Gentle bucket feeding with multihead weighing for potato chips, extruded snacks, kurkure, popcorn, roasted dry fruits, and confectionery.
🛢️ Edible Oils & Liquids
Drip-free piston and flow-meter filling for mustard oil, sunflower oil, milk, buttermilk, fruit juices, and purified drinking water.
🍯 Pastes & Sauces
Piston doser with heated hopper options for tomato ketchup, mayonnaise, ginger-garlic paste, honey, cosmetic lotions, and shampoo sachets.
💊 Pharma & Chemicals
Sanitary GMP-compliant pouch packaging for ORS electrolytes, protein powders, ayurvedic churna, washing detergents, and agrochemical granules.
Manufactured in Ahmedabad, Gujarat and shipped via Mundra & Nhava Sheva (JNPT) sea ports with ISPM-15 certified fumigated seaworthy wooden crating.
Watch our high-speed packaging machinery running in real factory environments. Every machine is rigorously test-run prior to factory dispatch.
Full speed automated weighing, vertical film forming, and hermetic sealing cycle.
Continuous bottle conveyor feeding with precision volumetric dosing.
Nitrogen flushing, high accuracy weighing, and pouch date batch printing.
Inspected at every stage of fabrication. Built with premium SS304/SS316 stainless steel, heavy structural chassis, and globally branded electrical components.
Verified engineering tolerances for high-volume production facilities. Customizations available for specialized container and pouch dimensions.
| Technical Specification | Standard Machine Configuration | Heavy-Duty / Turnkey Line |
|---|---|---|
| Filling Range / Capacity | 10g to 1000g (Digital Adjustment) | Up to 5kg / 10kg with Reinforced Chassis |
| Packaging Speed | 30 to 80 Pouches per Minute | Up to 120+ Pouches/Min with Multihead Weigher |
| Sealing Type | Center Seal / 3-Side / 4-Side Seal | Pillow Pouch, Gusseted Pouch, Doypack Zipper |
| Packaging Film Compatibility | Laminated Poly Film, BOPP, Aluminum Foil | Heat Sealable Co-Extruded Multi-Layer Film |
| Dosing / Weighing System | Servo Auger Filler / Telescopic Cup Filler | 10-Head / 14-Head Multihead Combination Weigher |
| Control System | Microprocessor PLC with 7-Inch Color HMI | Siemens / Delta Smart PLC with Remote Telemetry |
| Power Requirement | 3 kW, 220V Single Phase / 415V 3 Phase, 50 Hz | Customized to International Voltage Standards |
| Pneumatic Air Supply | 6 Bar, 0.3 m³/min Clean Dry Air | Integrated Silent Compressor Support |
| Contact Parts Material | SS304 Food-Grade Stainless Steel | Complete SS316 Sanitary Pharma Grade |
| Machine Weight & Footprint | Approx. 1400 x 1100 x 2200 mm, 650 kg | Customized for Factory Layout, 950 kg |
Designed by senior packaging automation engineers to maximize uptime, eliminate material wastage, and ensure airtight hermetic seal integrity on every cycle.
Store up to 50 individual recipes in memory. Operators can switch pouch sizes, change target fill weights, and adjust sealing temperatures with a single tap.
Independent servo motors drive the filling auger and film pulling belts with micro-step precision, guaranteeing filling weight accuracy within ±0.5%.
Optional food-grade nitrogen gas purging system removes residual oxygen from each pouch prior to sealing, extending product shelf life up to 12 months.
Advanced optical tracking sensor detects film print registration marks in real-time, preventing misaligned graphics and ensuring razor-sharp cutting precision.
Smart safety sensors automatically pause the product dosing feed if film feed runs out or jams, preventing messy machine spills and costly material loss.
Quick-release forming collar mechanism allows rapid changeover between different pouch widths in under 15 minutes without requiring specialized tools.
Technical details regarding machine commissioning, speed capacity, payment terms, and delivery timelines.
